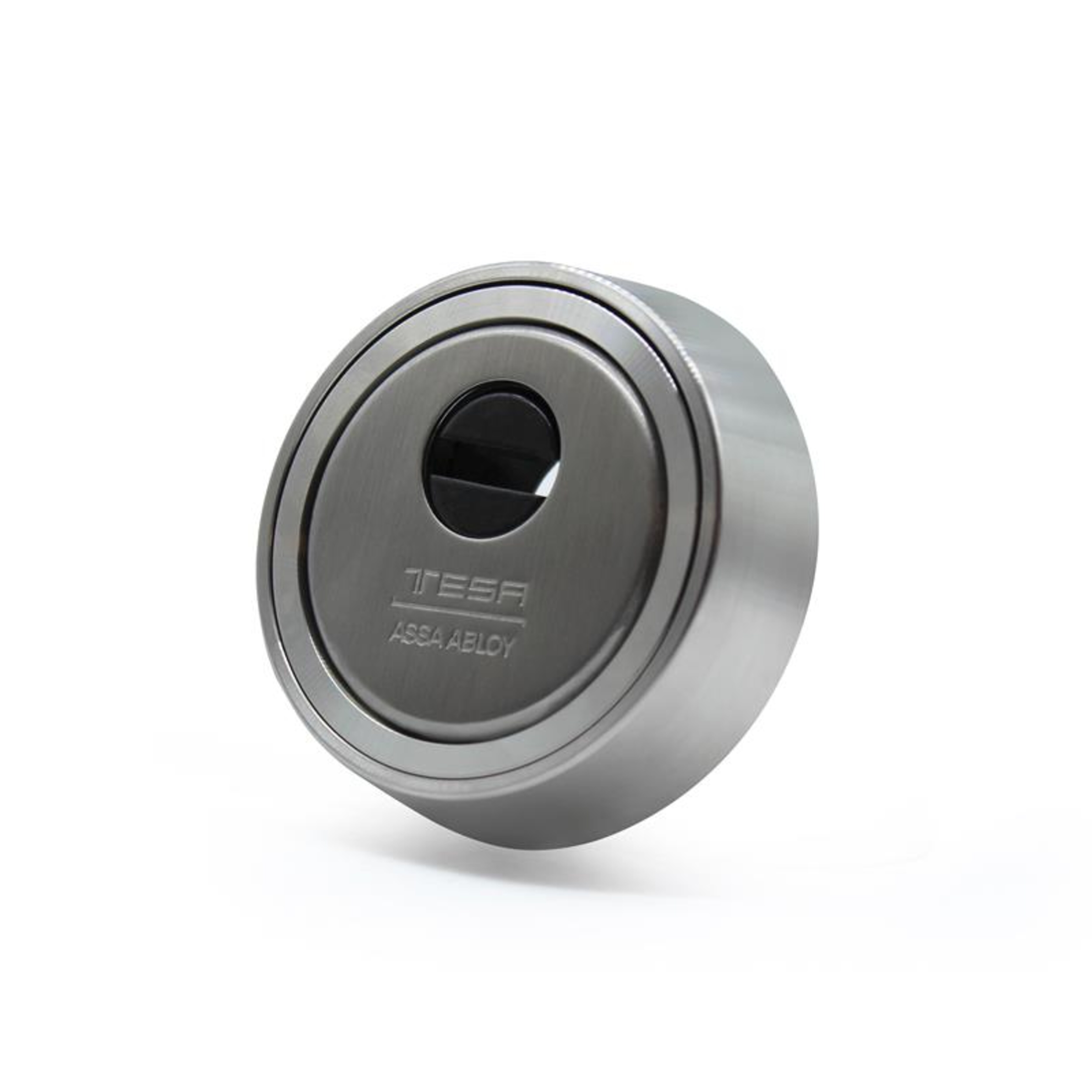

E900 high security escutcheon

The E900 security escutcheon is the most robust and secure of TESA ASSA ABLOY's security escutcheon range.

Main features:

• Escutcheon core: Completely reinforced solid steel Anti-drill ball inlays in points susceptible to drilling
• 6 anti-drill balls 9 mm thick tempered steel tube protector formed by microfusion to prevent drilling
• Solid stainless steel rotating bushing, with anti-jamming function
• Double rotating bushing to increase security
• Fastening by means of four tempered steel screws. (2 M6, 2 M5)
• Inner counterplate in 4mm thick steel
• Adjustable escutcheon with thread to adjust to different door thicknesses
• Escutcheon body does not protrude from the bushing, to facilitate door machining and to be able to install on metal doors TESA and DIN type housings (38 mm between axes)
• Compatible with Europrofile and Swiss Profile cylinders

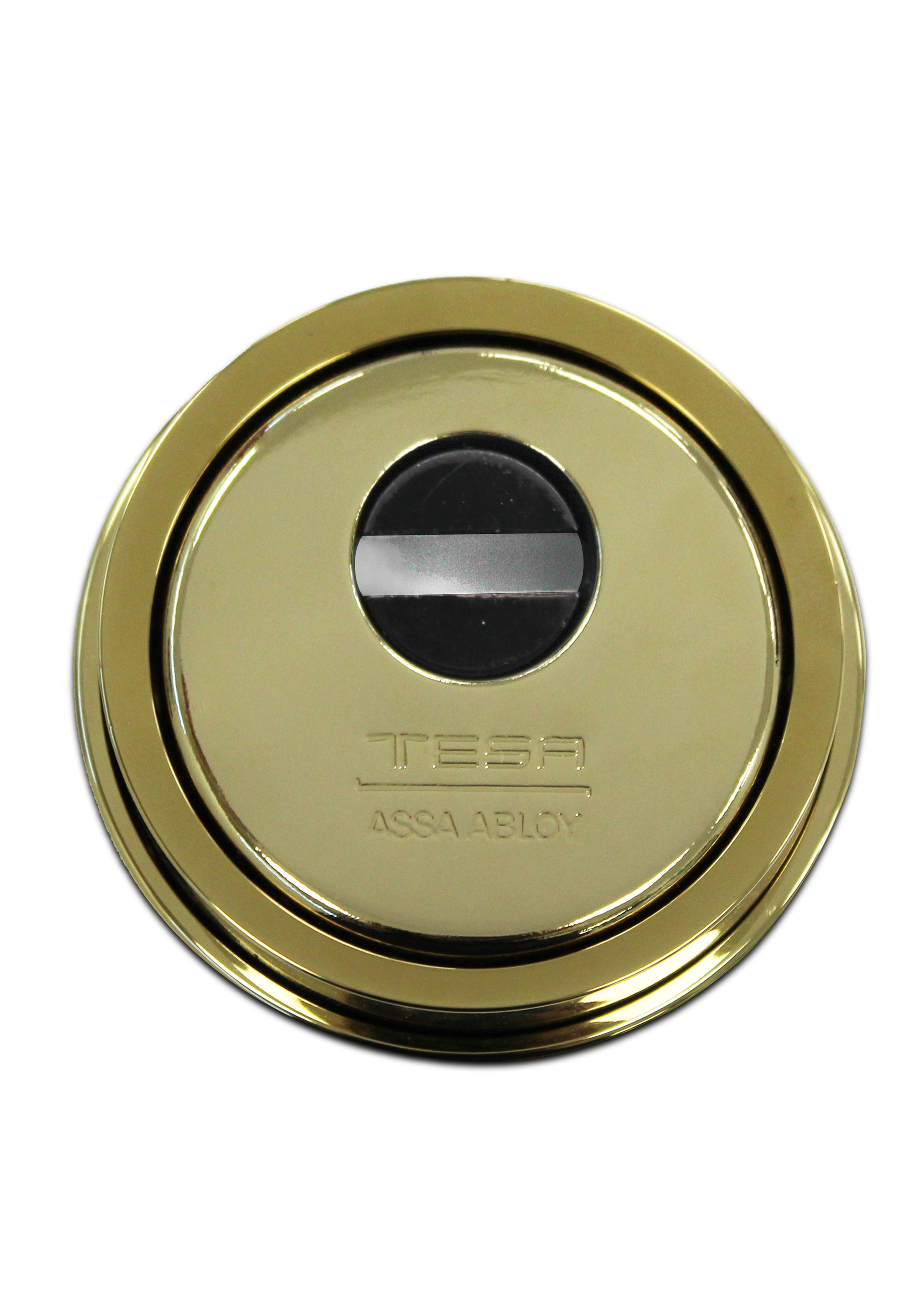

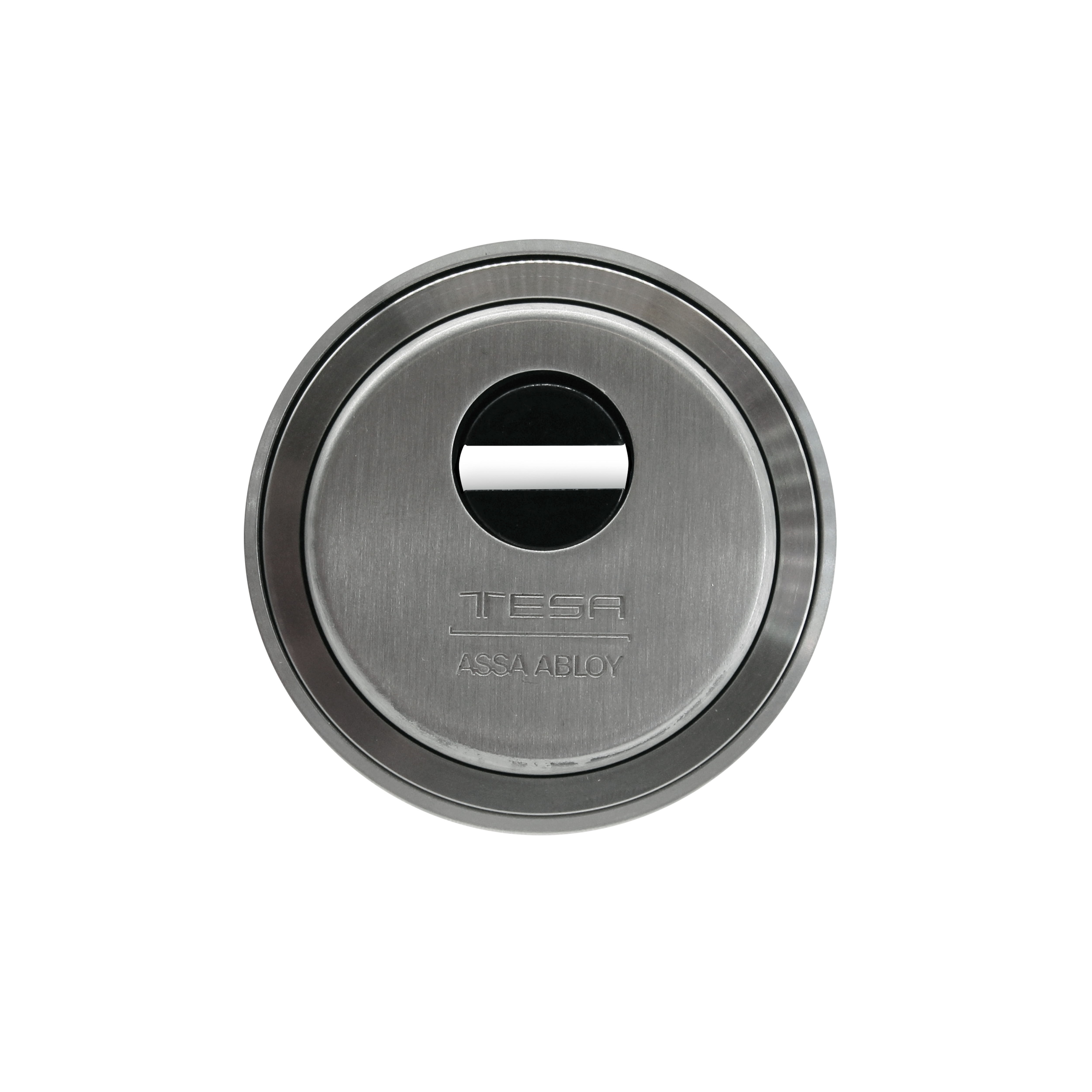

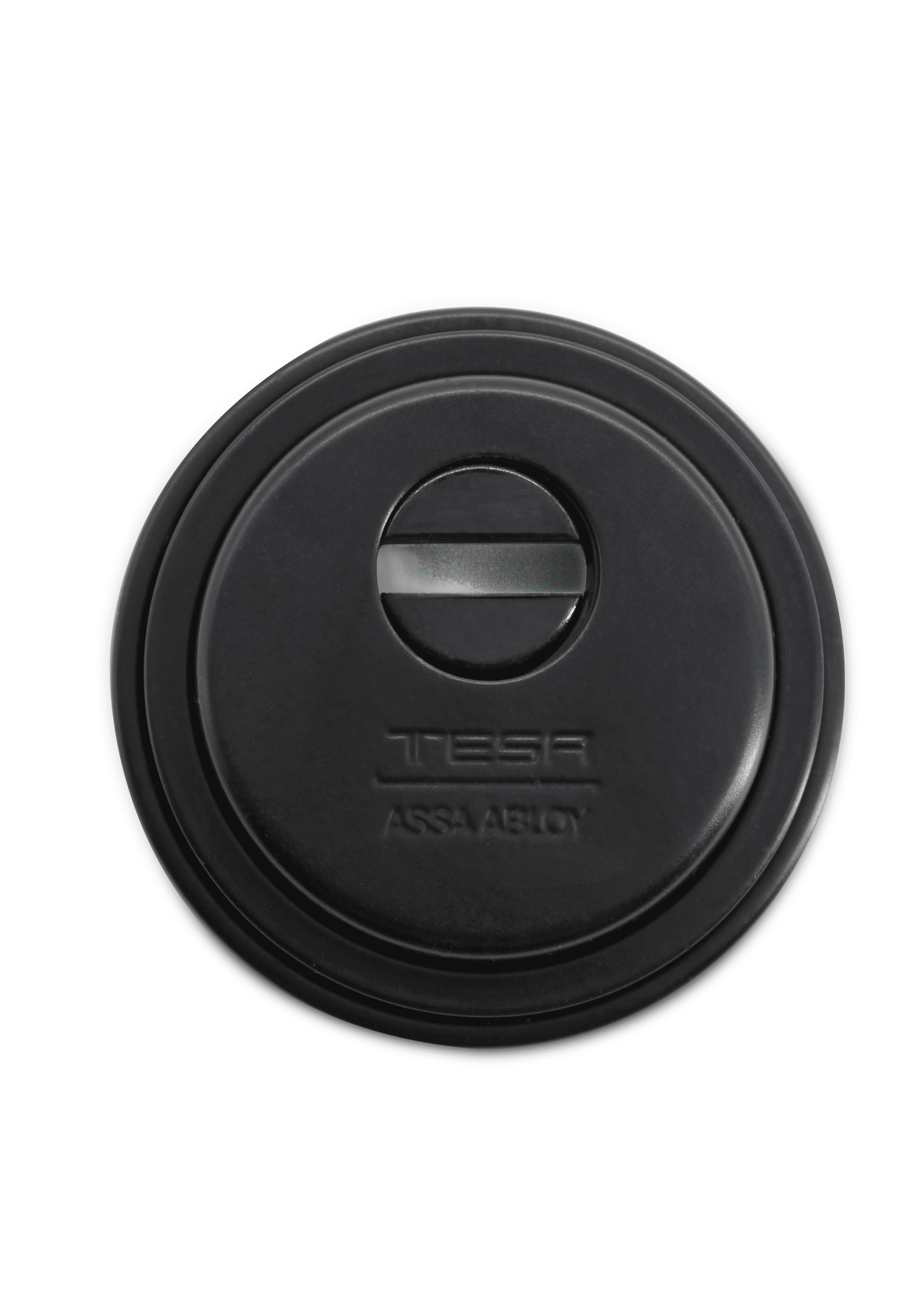

• Finishes AI (Stainless), LPD (Gold PVD treatment), NE (Black paint)
• Options Laser customization

Learn more about the shield with our video at the following link.
