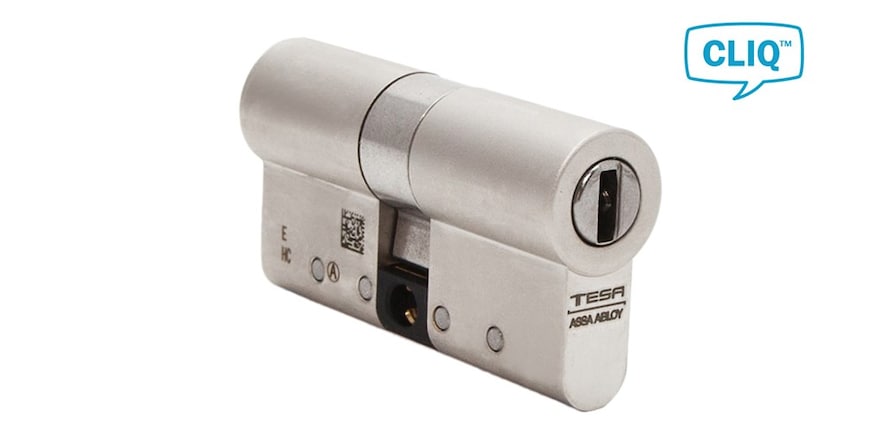

Euro profile double cylinder eCLIQ

Double sided locking cylinders are generally found in entry and exit doors in conjunction with mortise locks in public, commercial and residential buildings. Due to the flexible modular system, the TESA ASSA ABLOY eCLIQ double cylinders can be adapted to various construction lengths to suit every installation requirement.

Main features:

• Different memory versions and equipment variations can be selected (e.g. anti-drilling protection, hazard warning system, explosion protection or timer functions).
• Unlocking of European profile locks with an eCLIQ key.
• Electronic cylinder WITHOUT batteries.
• Power to the chip and motor is by means of an eCLIQ key with authorised access.
• Double clutch system: allows opening with a key from the outside when another key is inserted on the inside.
• Modular cylinder. Allows changes in measurements. Increment +5 mm.
• Cam with a radius of 15 mm. Option of 13 mm radius.
• Dimensions from 30x30 mm to 80x80 mm. 5 mm increment on each side.
• Valid for potentially explosive environments.
• IP54 without dust and rain protection.
• IP55 with protection against dust and rain.
• Optional: special anti-drilling version, with 6 pins and hard metal disc.

* We recommend downloading the technical data sheet below to see all the options.
