CT3000 door closer
CT3000 door closer for high traffic doors

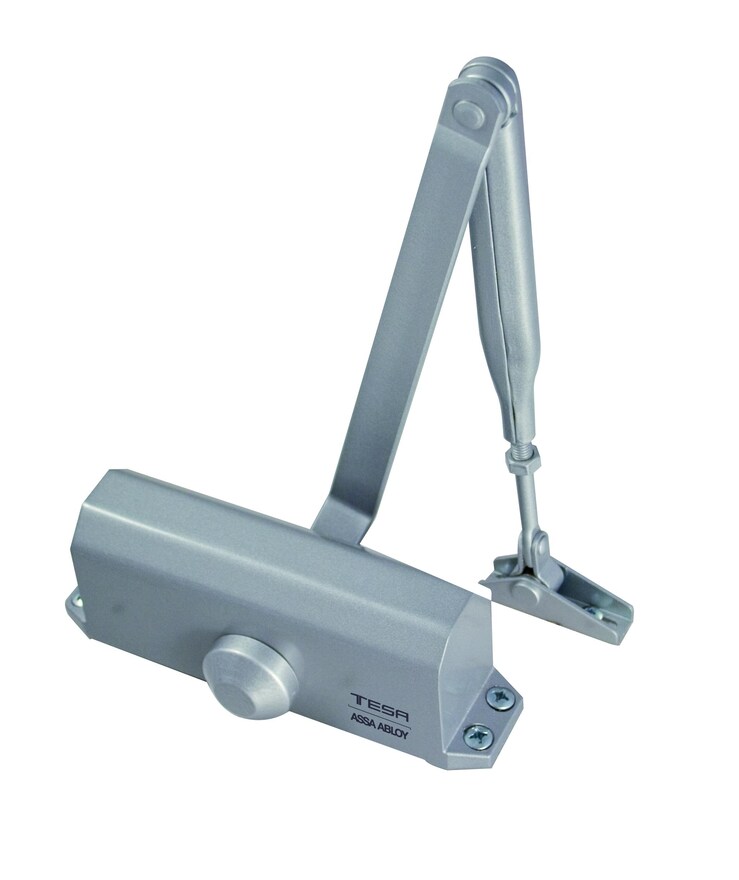

CT500 door closer
The CT500 door closer is the ideal solution for lightweight aluminium and PVC doors.
Main features:- Compact size.
- Mechanism that allows doors up to 950 mm wide and weighing approximately 60 kg to be closed in a controlled way.
- Two adjustment valves to control closing speed and latching speed.
- Two closing forces in a single model EN2 and EN3, which are selected when positioning the arm.
- The holes are always in the same position.
- Opening up to 180°.
- Two control valves for closing speed and latching.
- Interlocking hold-open system, adjustable to any position in the CT501 model.
- Distance of 19 mm between fixing holes.
- The 500 series door closers are UL certified and have exceeded 500,000 opening/closing cycles.
- Reversible.
- Finishes: White, Black, Gold, Silver.
Mounting position
Non-hinge side, frame mounting, Non-hinge side, door leaf mounting, Hinge side, door leaf mounting
Durability
1000000
Force adjustment
No
Max opening angle non-hinge side
180
Max opening angle hinge side
180
Min closing force
EN3
Installation type
Overhead
Height adjustable spindle
No
Max closing force
EN3
Operating temperature
-15 to +45°C
Fire door approval
No
Type of product
Door closer with arm
CT1800 door closer
CT1800 door closer. Certified in compliance with EN 1154 size 2/3/4.
CT2500 door closer
CT2500 door closer. Certified in compliance with EN 1154 closing force size 2/3/4.
CT2800 door closer
CT2800 door closer. Certified in compliance with EN 1154 adjustable closing force size 2/5.
