CT5000 door closer
CT5000 door closer with cam mechanism

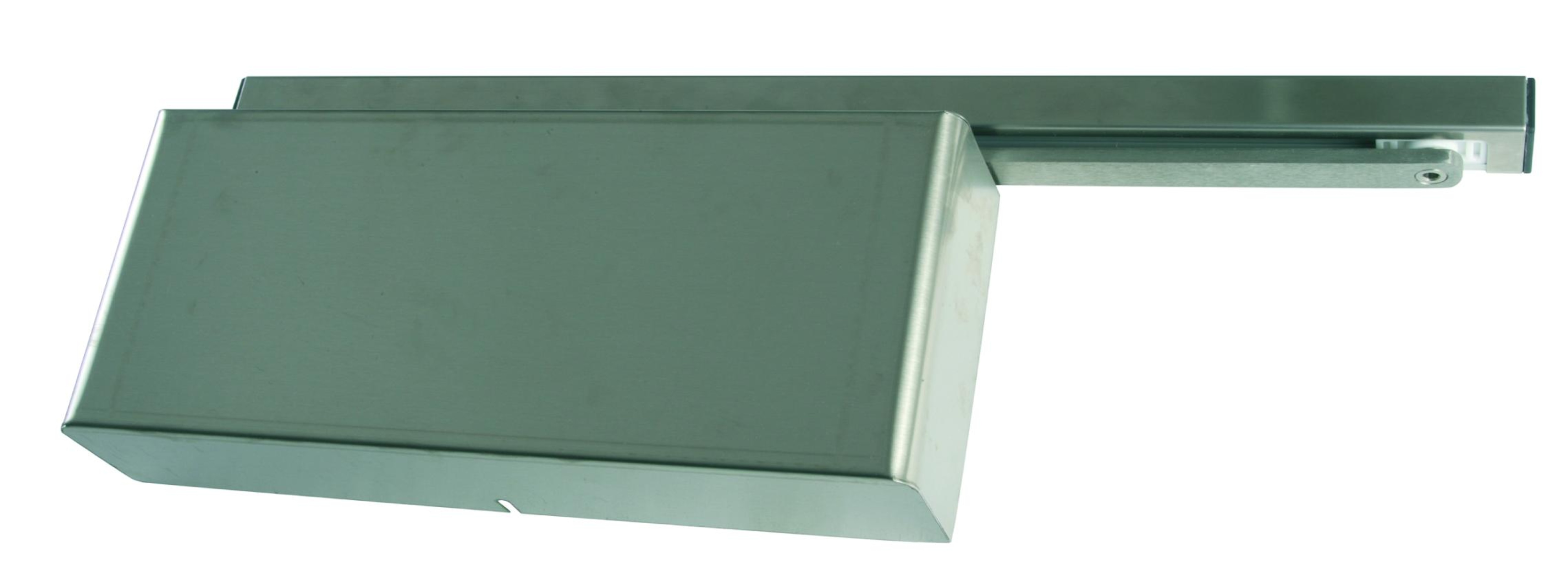

CT5700 door closer
The CT5700 is the door closer capable of controlling doors with a weight of up to 400 kg and a leaf width of up to 1600 mm.

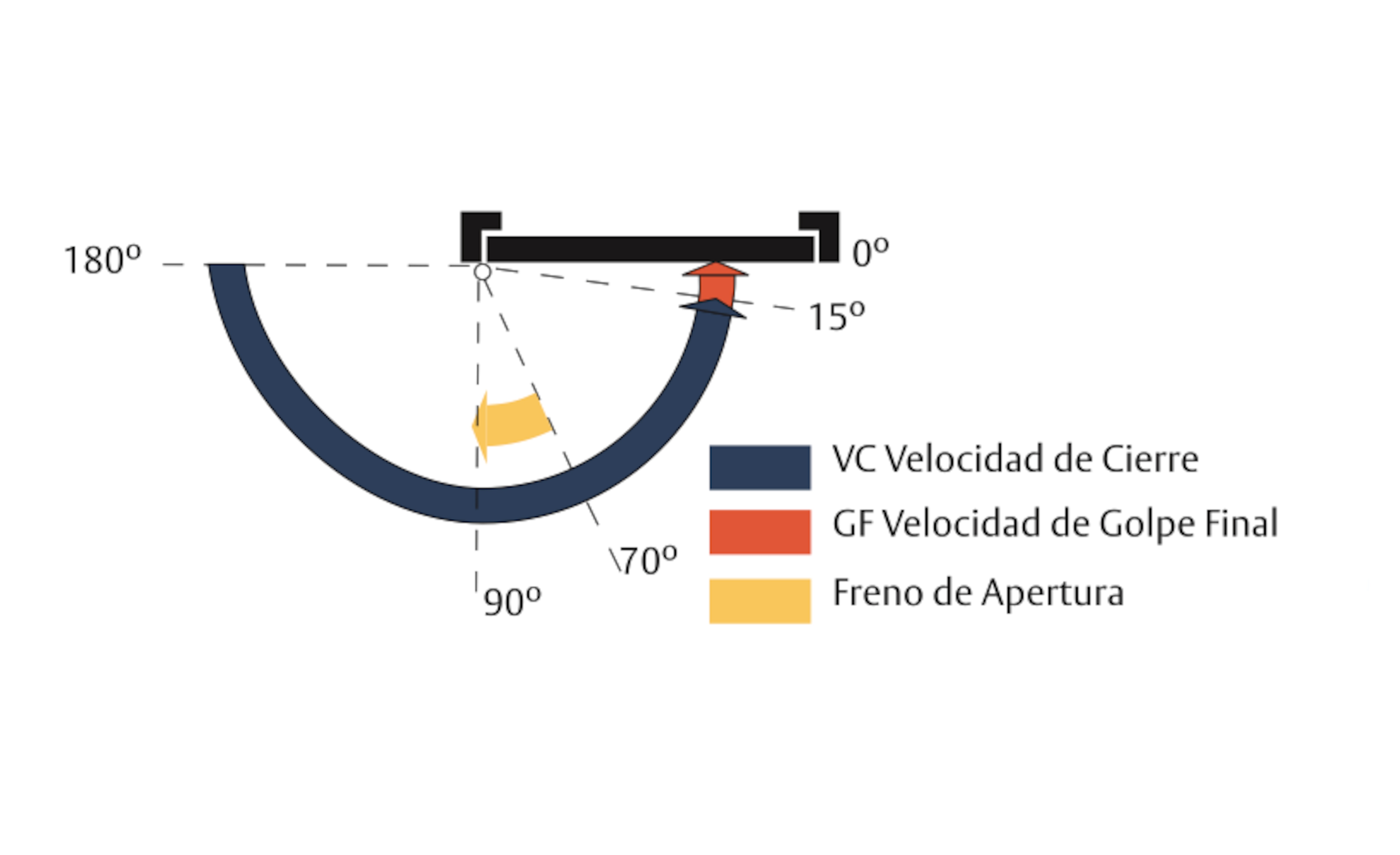

Main features:- Adjustable opening brake.
- Two separate valves for control of closing speed and latching.
- Certified according to UNE-EN 1154:1996 + A1:2003.
- Continuous adjustment of force from 5 to 7.
- Double mechanism acting on a single spindle, capable of controlling the movement of doors of up to 400 kg.
- Includes pre-installation on steel mounting plate and customised housing.
- Adjustable opening brake.
- Installed with DCG195 sliding guide, ordered separately.
- Fully reversible.
- Finishes: BL, BR, NE, OR, PL, IM.
Fire door approval
No
Installation type
Overhead
Min closing force
EN5
Type of product
Door closer
Max opening angle hinge side
180
Force adjustment
Yes
Max opening angle non-hinge side
120
Durability
500000
Height adjustable spindle
Yes
Operating temperature
-30 to +50°C
Max closing force
EN7
Hold open function
No
Mounting position
Hinge side, door leaf mounting, Hinge side, frame mounting, Non-hinge side, frame mounting
CT2300 door closer
CT2300 door closer. Certified in compliance with EN 1154 size 3.
CT4500 door closer
CT4500 door closer for high traffic
