CT5000 door closer
The CT5000 is a cam mechanism door closer that offers maximum smoothness and ease of opening while maintaining maximum strength and control of closing.
Main features:- Suitable for single or double leaf doors, with a maximum width per leaf of 1400 mm.
- Door closer with symmetrical cam mechanism.
- Minimum effort to open the door thanks to its extremely efficient mechanism.
- A single model reference for all assemblies thanks to symmetrical cam operation.
- Adjustable force EN1 to EN6 according to EN 1154 standard.

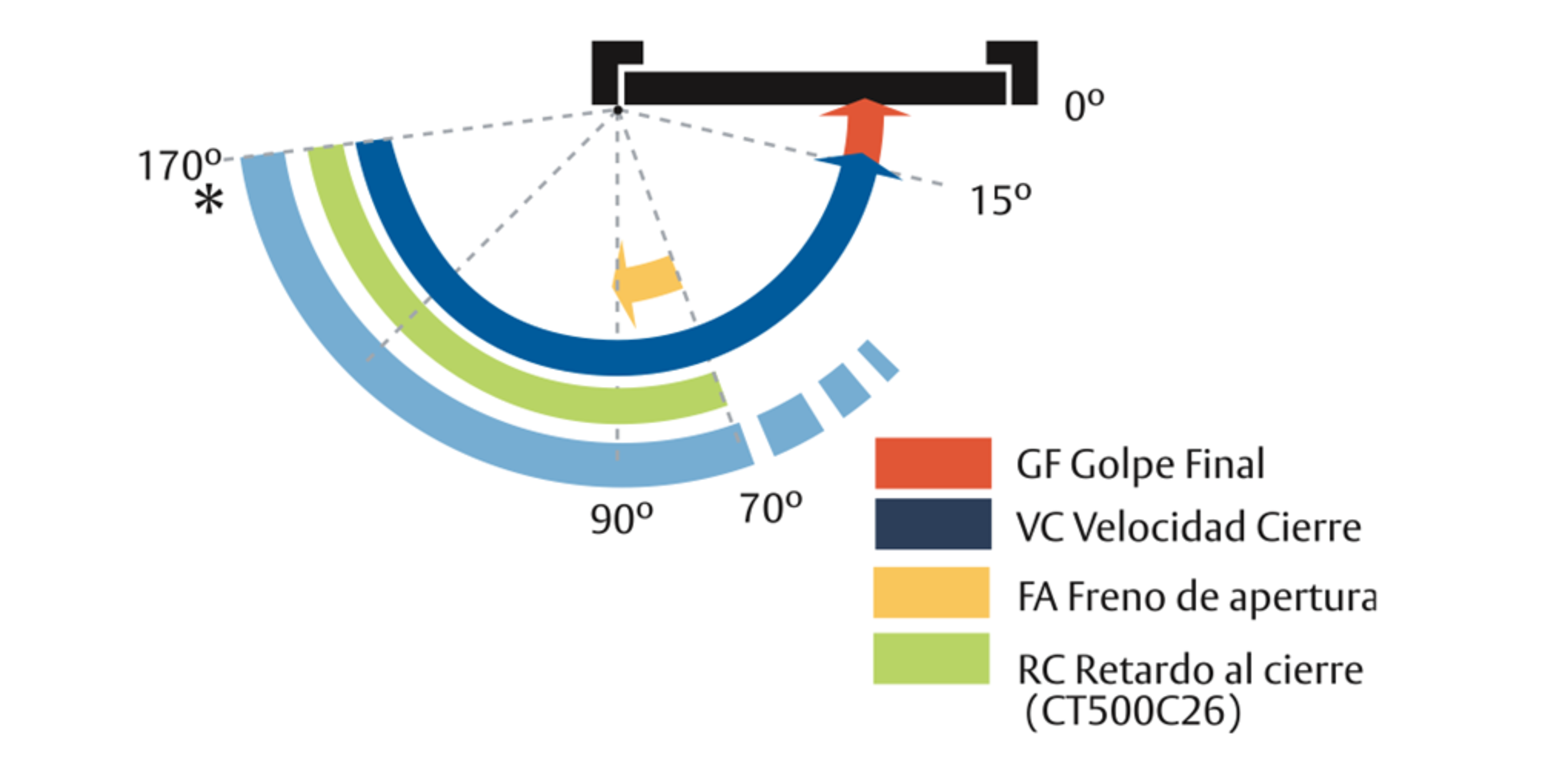

- Adjustable opening brake as standard.
- Delayed closing model: CT500C26.
- Control of closing speed and latching by means of independent valves.
- Spindle height extendable with adjustment up to 14 mm.
- Internal double security valve.
Min closing force
EN1
Force adjustment
Yes
Fire door approval
Yes
Hold open function
No
Technology
Cam Motion
Max opening angle hinge side
170
Max opening angle non-hinge side
120
Durability
500000
Mounting position
Non-hinge side, door leaf mounting, Hinge side, frame mounting, Hinge side, door leaf mounting, Non-hinge side, frame mounting
Operating temperature
-15 to +45°C
Max closing force
EN6
Installation type
Overhead
Type of product
Door closer
Height adjustable spindle
Yes
